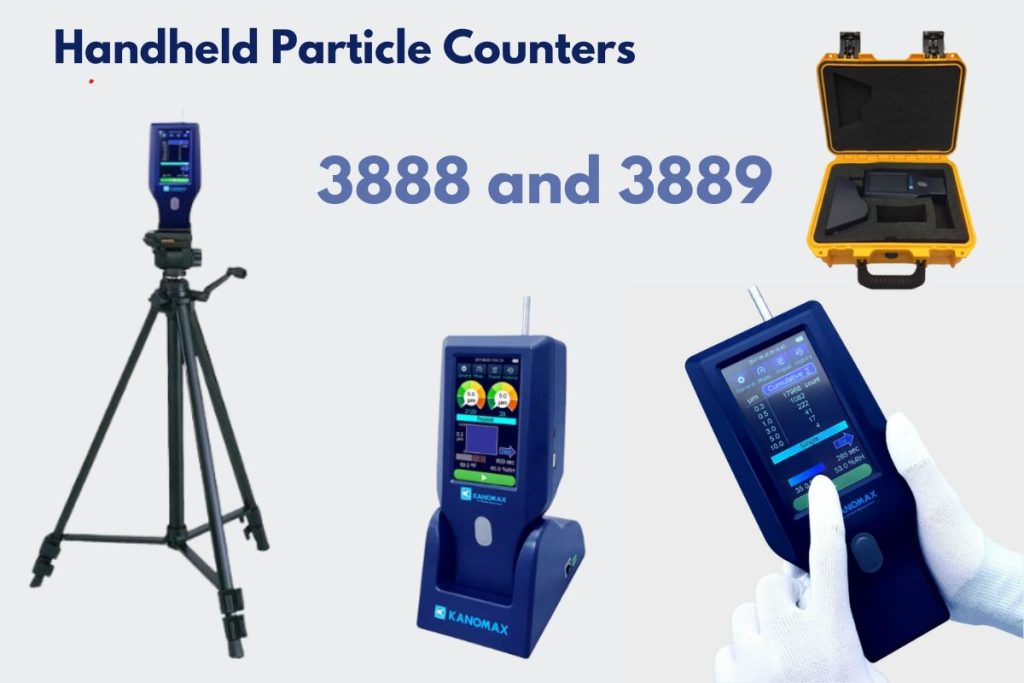

Handheld Particle Counters – Models 3888 and 3889

Handheld particle counters for accurate measuring and monitoring

The Model 3888 (3-channels) and 3889 (6-channels) Handheld Particle Counters utilize some of the same, proven parts that made our original Handheld Particle Counters so reliable and accurate, along with new and advanced components that increase power and ability.

These instruments meet and exceed new ISO 21501-4 Standards and are fully RoHS compliant. The new base offers advanced communication capabilitites like Wi-Fi, ethernet and RS485, and the device has much larger, full color, graphic touchscreen display. These particle counters can also be remotely controlled as well as monitored through a PC,which allows for convenient 24/7 monitoring with Kanomax’s advanced software.

Handheld particle counters for accurate measuring and monitoring

Applications of Handheld Particle Counters 3888 and 3889

Monitor and verify cleanroom (Pharmaceutical, semiconductor, food industry)
Monitor surgical rooms
Filter testing
IAQ investigation
Data center cleaning

Features and Benefits of Handheld Particle Counters 3888 and 3889

Model 3888 measures particle sizes: 0.3, 0.5, 5.0 μm
Model 3889 and 3889-01 measures particle sizes: 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 μm
Easy to use interface is displayed on a 4.3-inch, full color crack resistant, LCD touchscreen
On-board data storage of up to 10.000 measurements
Creates Microsoft Excel compatible .CSV file without the need for additional software and user can download it via USB memory

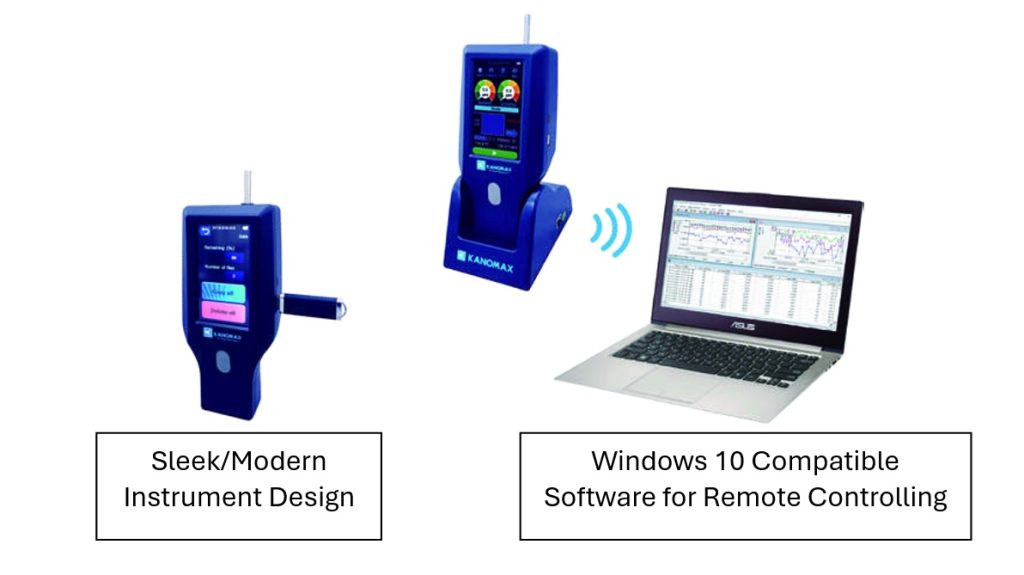

Kanomax measuring software displays and graphs the measurement data in real-time while connected to PC
Language setting options include English, Chinese, Japanese and Spanish

Specification of Handheld Particle Counters 3888 and 3889

Main Unit Specifications
Product		Handheld Particle Counter
Model		3888 (3-channels)	3889 (6-channels with temp. and hum measurement) 3889-01 (6-channels without temp. and hum)
Particle Measurement	Sizes	3 channels (0.3, 0.5, 5.0μm)	6 channels (0.3, 0.5, 1.0, 3.0, 5.0, 10.0μm)
	Flow Rate	0.1CFM (2.83L/min) Accuracy: ±5% (Compliant with JIS B9921 and ISO21501-4)
	Maximum Measurable Concentration	10% for 2,000,000 particles/CF (compliant with JIS B9921 and ISO21501-4)
	Counting Efficiency	50±20% (for PSL particles near the minimum measurable size) 100±10% (for PSL particles of 1.5 to 2 times as large as the minimum measurable size) (Compliant with JIS B9921 and ISO21501-4)
	False Count	≦1 particle/5 minutes (Compliant with JIS B9921 and ISO21501-4）
	Size Resolution	≦15% (for PSL particles near 0.3μm) (Compliant with JIS B9921 and ISO21501-4)
Display		4.3-inch color LCD, Resistive touch panel
Communication	Standard	USB (Host: for printer and USB flash memory, Device: for PC)
Communication	Stand (option)	RS485, Ethernet, and WiFi connection points in the base/stand
Recording Media	Media	Internal memory
Recording Media	Number and Format	Up to 10,000 records in CSV format
Language		English, Japanese, Chinese, and Spanish
Power	Internal Supply	Li-ion rechargeable battery (Replaceable)
	External Supply	AC adapter – Input 100 to 240 V
	Continuous Operation Time	5 hours (Single measurement)
Operating Environment	Main Body	From 10 to 40 ℃, from 0 to 85%RH (With no condensation)
Operating Environment	Probe	From 0 to 50 ℃, from 2 to 98%RH (With no condensation)
Dimension		W213 X H100 X D55 mm
Weight		650g
Hydrothermal Measurement (Available as an option for the 6-channel portable particle counter)	Measurement Range	(Temperature) From 0 to 50℃ (Humidity) From 2.0 to 98.0％RH
	Display Resolution	(Temperature) 0.1℃ (Humidity) 0.1％
	Humidity Accuracy	±3.0% (30 to 85%RH), ±5% (other range of humidity)
	Temperature Accuracy	±0.5℃
	Response Time	Approximately 60 seconds or less (90％ response)

Accesories of Handheld Particle Counters 3888 and 3889

Zero Count Filter
USB Cable
Zero Count Filter with Tubing
Inlet Protective Cap
2 x Lithium-ion Battery
AC Adapter
Quick Start Guide
Measurement Software
User Manual
Calibration Certificate

Optional Items of Handheld Particle Counters 3888 and 3889

Meter Stand
Model 3888-70

Communication function: Ethernet, Wi-Fi, RS-485
Size: W100 x H106 x D147 mm

Temperature & Humidity Probe
Model 0842

Measurement range: 0 to 50 °C (Temperature), 2.0 to 98.0% RH (Humidity)
Resolution: 0.1 °C (Temperature), 0.1% (Humidity)
Accuracy of temperature: ± 0.5 °C
Accuracy of humidity: ± 3.0% (*30% to 85% RH), ± 5% (* other range than 30% to 85% RH)
Responsibility: Within approx. 60 sec (*90% response)
