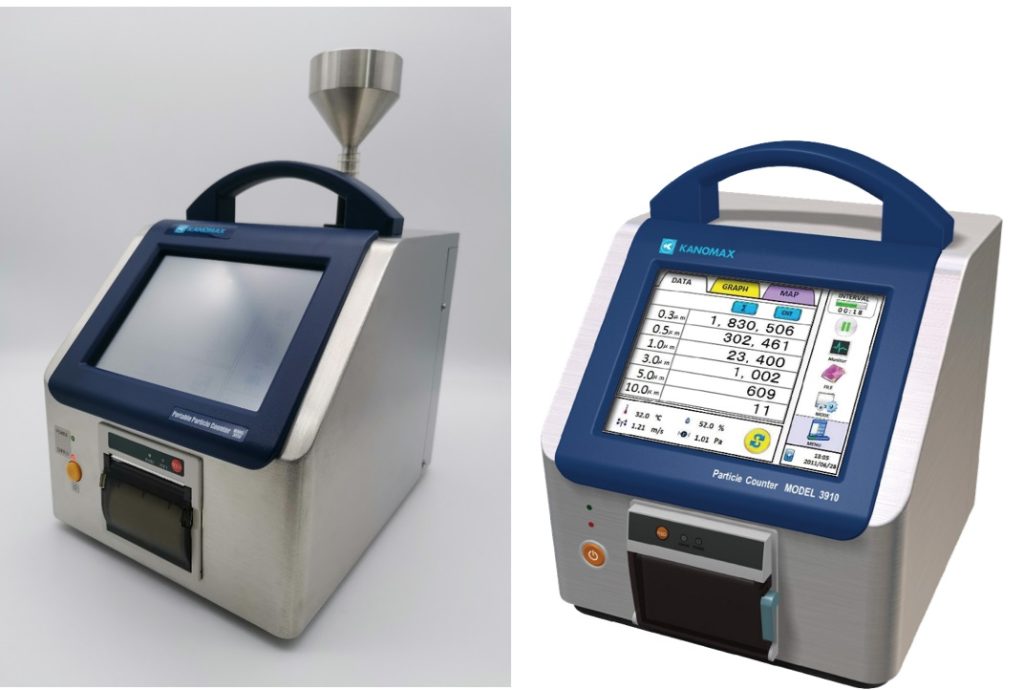

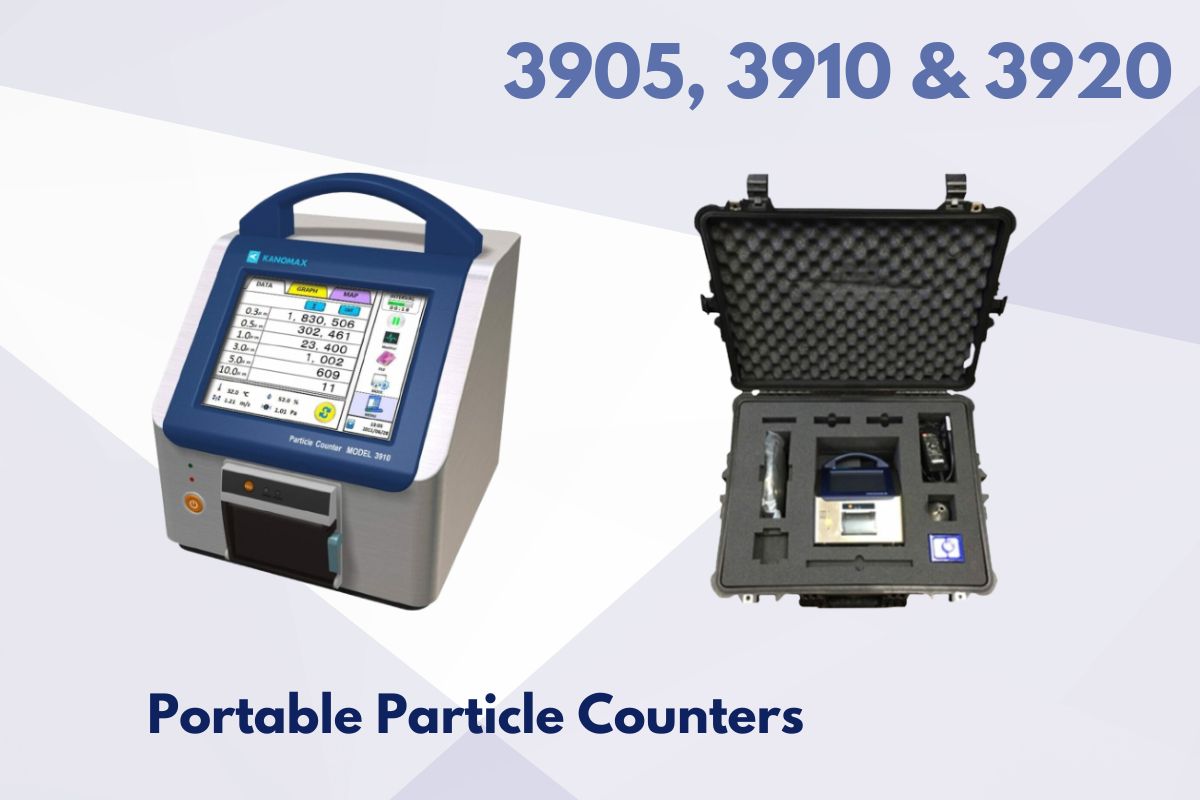

Portable Particle Counters – Model 3905, 3910 & 3920
The smallest 6-channel portable particle counters in the industry with 28.3L/min (3905), 50L/min (3910), 100L/min (3920) sampling flow rate.
One of smallest in the industry
Since it is only 5.5 kg, it can be easily carried anywhere. Small size, you can measure anywhere you choose.
Easy operation with touch panel
A large 6.4-inch touch panel LCD makes it easy to check and operate.
Extensive option connection
By using the Climomaster anemometer probe(6531-2G), you can simultaneously measure the air velocity, temperature, and humidity of clean air.
The smallest 6-channel portable particle counters in the industry with 28.3L/min (3905), 50L/min (3910), 100L/min (3920) sampling flow rate.
One of smallest in the industry
Since it is only 5.5 kg, it can be easily carried anywhere. Small size, you can measure anywhere you choose.
Easy operation with touch panel
A large 6.4-inch touch panel LCD makes it easy to check and operate.
Extensive option connection
By using the Climomaster anemometer probe(6531-2G), you can simultaneously measure the air velocity, temperature, and humidity of clean air.
Flow rate of Portable Particle Counters 3905, 3910 & 3920
- MODEL 3905, Flow Rate 28.3 L/min
- MODEL 3910, Flow Rate 50 L/min
- MODEL 3920, Flow Rate 100 L/min
Feature & Benefit of Portable Particle Counters 3905, 3910 & 3920
0.3 µm, 0.5 µm, 1.0 µm, 3.0 µm, 5.0µm, 10.0µm- 28.3 LPM (1.0 CFM), 50 LPM (1.77 CFM), and 100 LPM (3.5 CFM) flow rate speeds the sampling process
- Simultaneously measures and displays up to 6 particle sizes from 0.3 to 10 microns
- Fully compliant with ISO 21501-4 calibration standard
- Enables you to certify cleanrooms up to ISO Class 2
- 50 LPM and 1 CFM flow rate respectively and a 0.3 micron sensitivity.
- Upload from blueprint your cleanroom layout
- Optional CLIMOMASTER environmental sensor provides the ability to measure air velocity, temperature and humidity making these instruments the ultimate tools for cleanroom certification.
- Intuitive ICON-driven screens and menus are easy to learn and simple to use
- NIST TRACEABLE CALIBRATION Certificate* comes standard
- 3900 Series units can store up to 10,000 records of particle count data from up to 6 particle channels and the configurable recipe database can store up to 50 recipes for sampling and reports.
- All data can be quickly and reliably transferred to a computer, a Facility Monitoring System or Building Automation System.
- Secure data transfer to a USB Flash Drive
- 21 CFR Part 11 compliant with IQ/OQ documentation available
- Built-in printer and onboard datalogging (up to 10,000 records) is standard on both 3910 /3905
- Flexible communication with these instruments is made possible by the integrated Ethernet, RS-485, USB and Flash Drive memory card interfaces
Application of Portable Particle Counters 3905, 3910 & 3920
- Contamination Control For Clean Room
- Critical Environment Monitoring
- HEPA Filter Performance Testing
Use of Portable Particle Counters 3905, 3910 & 3920
- Pharmaceutical Industry
- Semiconductor industry
- Electronic component manufacturing industry
- Film manufacturing industry
- Hospital
- Laboratory
- etc
Specification of Portable Particle Counters 3905, 3910 & 3920
| Main Unit Specifications | |||
|---|---|---|---|
|
Model |
3905
|
3910 |
3920 |
|
Light Source
|
Laser diode |
||
|
Measuring Particle Size
|
0.3, 0.5, 1.0, 3.0, 5.0, 10.0 (μm)
|
0.5, 0.7, 1.0, 3.0, 5.0, 10.0 (μm)
|
|
|
Flow Rate
|
1.0 CFM (28.3 LPM)
|
1.77 CFM (50 LPM)
|
3.5 CFM (100 LPM)
|
|
Counting Efficiency
|
50±20% at 0.3μm
|
50±20% at 0.5μm
|
|
|
Concentration Limit
|
500,000 particles/ft³ at 10% coincidence loss
|
300,000 particles/ft³ at 10% coincidence loss
|
|
|
Sampling Time
|
6sec ~ 23hours 59min 59sec (configurable)
|
||
|
Interval Time
|
6sec ~ 23hours 59min 59sec (configurable)
|
||
|
Zero Count Level
|
Less than 1 count / 5 minutes
|
||
|
Printer
|
Built-in thermal printer
|
||
|
Display
|
6.4 inch color touch screen
|
||
|
Interface
|
Ethernet, USB, Memory card slot (MMC)
|
||
|
Data Storage
|
10,000 data points
|
||
|
Security
|
Password authentication and management, secure data, and audit trails (meets 21 CFR Part 11 compliance)
|
||
|
Reports
|
ISO146441-1, GB/T16292-2010, FEDERAL STANDARD, BRITISH STANDARD, EU GMP
|
||
|
Standards
|
ISO 21501-4, JIS B9921, CE
|
||
|
Power
|
AC 100 – 240 V or Li-ion Battery
|
||
|
Dimensions
|
W 7.9 x D 7.9 x H 8.1 inch
|
||
|
Weight
|
14.2 lbs (6.44 kg)
|
||
|
Environmental Sensor
|
Air Velocity, Temperature, Relative Humidity and Pressure
|
||
|
What’s included
|
Quick-start guide, AC adapter, zero filter, Isokinetic probe with 79 inch (2m) tubing, inlet nozzle, data processing software, memory card, 2 rolls of cleanroom-grade printer paper, 1 x Li-ion battery and calibration certificate |
||
Accessories of Portable Particle Counters 3905, 3910 & 3920
- Power cord (with NEMA plug)
- Isokinetic probe
- Zero filter
- Tygon tube (3M)
- Printer paper (2 pcs)
- PC measurement software
- Instruction manual
- Test sheet / Certificate calibration / Traceability certificate
- AC adapter
- USB memory
- Lithium-ion battery
Optional Items of Portable Particle Counters 3905, 3910 & 3920
- Carrying case
- Lithium-ion battery
- Battery charger

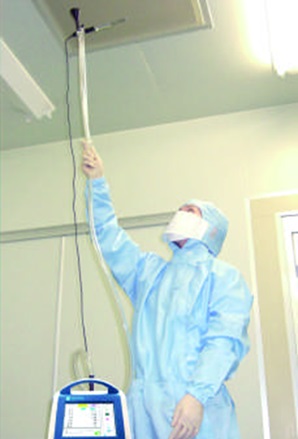

- Air velocity/ Temperature/ Humidity probe (*2m cable)
- Pressure sensor/ Pressure sensor cable
- Contact output cable
- Printer paper (5 pcs)
- IQ/OQ Document
