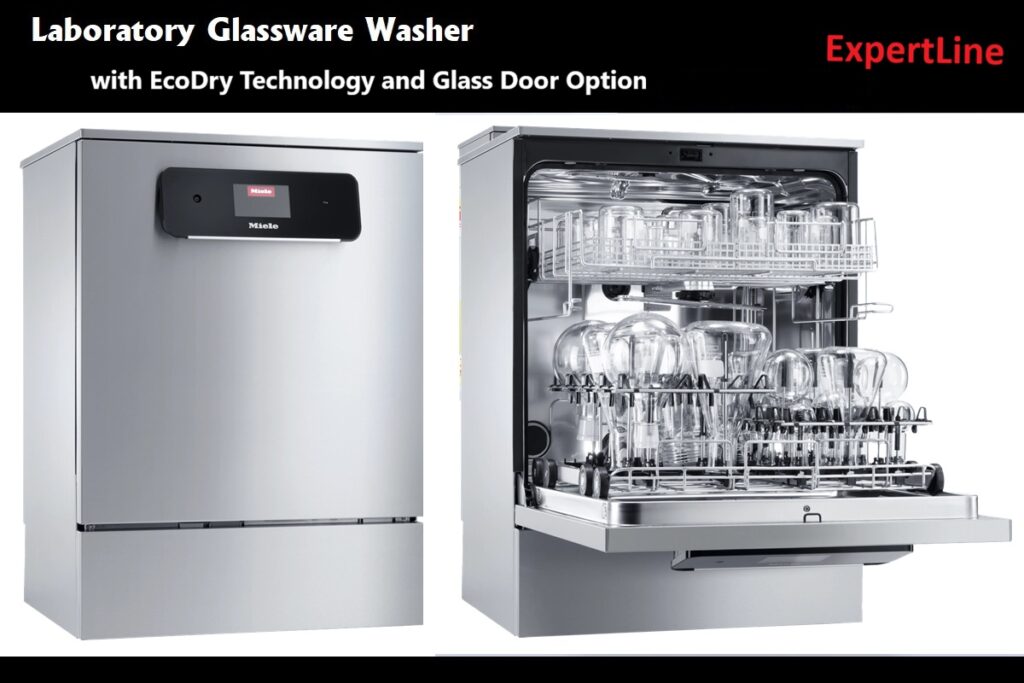

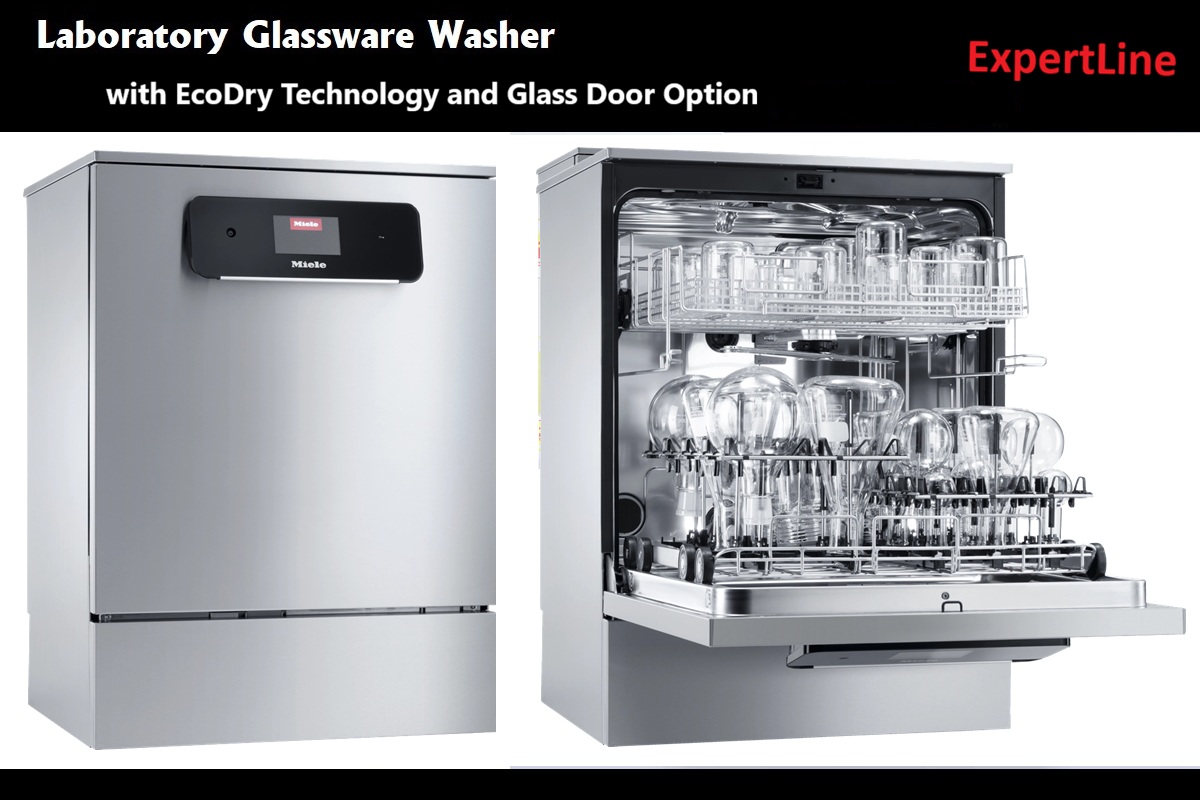

PLW 8683 – ExpertLine Lab Washer with EcoDry - PT. Prima Instrument Analitika

With our new ExpertLine range you can fully rely on the analytical cleanliness of your lab glassware. If you’re searching for a sustainable expert that delivers the highest standards in cleaning and user convenience then look no further, it’s time to meet ExpertLine.

Our EcoDry technology features the AutoOpen function, which allows residual moisture to escape at the end of the programme, allowing glassware to cool down more quickly and therefore be unloaded promptly. The glass door variant also allows you to easily monitor the cleaning process.

All experts offer maximum efficiency thanks to high capacities and resource-saving cleaning performance – for example with a capacity/cycle of 128 laboratory bottles or 98 pipettes and other laboratory glassware.

Perf./cycle, e.g. 128 laboratory flasks
Flexible and simple – modular load carriers & EasyLoad system
Maximum user convenience with M Touch Flex full-touch colour display
Convenient drying support – EcoDry
Connectivity as standard via WiFi
Efficient use of resources – variable speed heater pump

Perf./cycle, e.g. 128 laboratory flasks
Flexible and simple – modular load carriers & EasyLoad system
Maximum user convenience with M Touch Flex full-touch colour display
Convenient drying support – EcoDry
Connectivity as standard via WiFi
Efficient use of resources – variable speed heater pump

Model

	PLW 8683 [ADP LD DC10]	PLW 8683 [LD DC10]	PLW 8683 [OIL LD DC10]
Freestanding, can be built-under, slimline	Yes	Yes	Yes
Stainless steel casing	Yes	Yes	Yes
Control panel colour	Black	Black	Black
Number of wash levels	2	2	2
Cold water [number]	1	1	1
DI water [number]	1	1	1
VEP – with feed pump for DI water [number]	1	X	X
Integrated water softener	Yes	Yes	Yes
1 dispenser pump for liquid cleaning agent	Yes	Yes	Yes
1 dispenser pump for neutralising agent	Yes	Yes	Yes
Multi-component filter system	Yes	Yes	Yes
Variable-speed heater pump	Yes	Yes	Yes
In-door salt container	Yes	Yes	Yes
EcoDry	Yes	Yes	Yes
Oil and grease-resistant seals	X	X	Yes
EasyLoad	Yes	Yes	Yes

Product Benefits

1. Cleaning Results

Variable-speed heater pump

The heart of perfect results

In the individual programs the speed of the pump and thus the wash pressure is adjusted in line with the relevant requirements – high pressure facilitates the removal of stubborn soiling, whilst low pressure guarantees the complete wetting of all the wash items.

As a result, the consumption of water and energy remains particularly low with optimum wash pressure at all times.

Integrated water softener

Cleaner results

Minerals in tap water can hinder the cleaningbrprocess and cause deposits to form onbrinstruments. Miele thermal disinfectors are fitted ex works with a water softener which removes the bulk of ionsbrfrom tap water which cause water hardness. In the case of extremely hardbrwater and in practices using large amounts of instruments,bradditional complete demineralisation may make soundbreconomic sense.

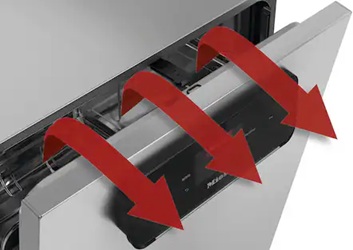

EcoDry via patented AutoOpen function

Convenient drying support

At the end of the reprocessing programme the machine door opens automatically as soon as the temperature in the wash cabinet has fallen below 70 °C, thanks to the AutoOpen function. This allows residual moisture to escape easily from the wash cabinet and the washed items dry more quickly.

Innovative cleaning programme

Cleaning perfection

For more than 50 years Miele Professional has been carrying out research and development in the area of cleaning and disinfection on an ongoing basis. Based on our decades of experience, special programmes such as Orthovario, OxiVario, Robotvario and Inorganic and Organic have been developed.

2. Connectivity

Wifi interface

Securely connected including with web portal

The WiFi interface supports flexible operation in the local network together with a secure connection to the Miele MOVE web portal. The machine is networked in accordance with the state of the art. As well as connecting to documentation systems, other digital services are also supported. Miele Professional machines with the WiFi interface are Miele MOVE-ready. Miele MOVE is not available in all countries.

3. Quality

Easy-to-service construction

Simple access to the machine

For planned maintenance and servicing, and in the event of a fault: The easier it is for the technician to install important components inside the machine the quicker the machine will be back up and running.

For this reason Miele Professional is keen to encourage simplicity in the design of its appliances from the development stage onwards, as this facilitates easy access and quick servicing.

Crevice-free wash cabinet

Seamlessly welded

The entirely new wash cabinet developed by Miele Professional sets new standards in hygiene.

The wash cabinet is seamlessly welded using laser technology and its smooth joints provide no chance for dirt deposit build-up. Thus the adhesion of blood or other stains is prevented. A plus for hygiene is achieved by installing the heating elements outside the wash cabinet.

Heater elements outside the wash cabinet

Hygienic and practical

The heating elements installed outside the wash chamber offer additional hygiene. This means one less chance for germs to become lodged in crevices and removes the danger that plastic parts falling out of baskets could burn.

4. Safety

Waterproof System (WPS)

Protection against flooding

The Waterproof System protects against water damage with a dual solenoid valve at the stopcock. If the first valve does not close, the second one interrupts the water intake.

The double skinned inlet hose provides the highest level of protection: In the event of damage to the inner hose, water flows through the outer sleeve into the sump. Intelligent sensor technology detects leaks and in an emergency also stops the intake of water.

Spray arm pressure monitoring

Safety through controls

A variety of factors, such as a faulty basket connection or an excessive build-up of foam, can lead to a reduction in the wash pressure. Monitoring the wash pressure in the washer-disinfector guarantees optimum process operations, so that the appliance always produces reliable reprocessing results.

Process documentation

End-to-end documentation

The complete minuting and documentation of all the reprocessing processes ensures the highest level of safety for patients and users.

Miele Professional offers numerous documentation solutions for every need. In addition, the analysis of the recorded process data facilitates the effective optimisation of the entire reprocessing operation.

5. User Convenience

How-to sequences

A machine that explains itself

If required, how-to sequences shown on the display provide assistance with changing filters or cleaning parts, for example.

M Touch Flex controls

Setting standards in modern user convenience

The full-touch control system with colour touch display has set a new benchmark for quick, intuitive machine operation. It also comes with a range of configuration options, adapting the appliance to personal requirements – simply at the touch of a fingertip or with a swipe.

All displays are available in 32 different languages. Additionally, large icons make it easier to identify the appliance status, even from far away.

Wash cabinet lighting

Well-lit during loading and unloading

The machine has 2 LEDs in the top of the wash cabinet.

Clear text display

Text display

Everything at a glance: The display shows everything as clear text in the country-specific language.

Comfort suction lance DC10

Convenient dispensing of liquid process chemicals

Constant monitoring of the fill level and option to integrate into Miele MOVE to create customised notifications For dispensing liquid cleaning agent/neutralising agent.

Flexible language selection

The international expert

The option to easily select a language via a special button on the control panel makes the ExpertLine and ExploreLine models the international experts in your team.

AutoClose2

Automatically closing door

Miele AutoClose – safe and convenient for seamless work processes. Just the slightest contact between the door and the appliance is sufficient for the washer-disinfector to close fully automatically.

Large selection of accessories

Reprocess flexibly

Comprehensive range of accessories for optimum cleaning performance and a variety of reprocessing options.

Patented in-door salt container

Replenish salt conveniently

Ergonomic convenience: The in-door salt container is particularly easy to fill.

Can be built under a worktop

For a consistent look

The machine can be easily integrated under a worktop.

Product Details

Construction type and version
Construction type	Freestanding, can be built-under, slimline
Range	ExpertLine
Casing	Stainless Steel
Control panel colour	Black
Lid	Stainless Steel
Can be built-under	Yes
Number of wash levels	2
AutoClose – automatic door lock	Yes
Buzzer, acoustic signal at end of programme	Yes
Service-friendly design	Yes

Application
Suitable for laboratories	Yes

Capacity
Narrow-necked glassware per cycle [number]	64
Test tubes per cycle [number]	196
Vials per cycle [number]	196
Laboratory flasks per cycle [number]	128
Pipettes per cycle [number]	98

Performance data
Circulation pump, Qmax in l/min	500
Shortest programme running time in min	20
Maximum final rinse temperature in °C	93
Wash cabinet usable capacity in l	145
Tested operating hours	15000

Control system
Control type	M Touch Flex
Max. delay start in h	24
Programmability	Programmable
Programmes [number]	19
Free programme positions [number]	10
Time left display	Yes
Programme sequence display	Yes
Selectable display languages	Yes

Standard electrical connection
Electrical connection	3N AC 400V 50HZ
Electric heater rating in kW	8.5
Total rated load in kW	9.3
Fuse rating in A	16
Length of mains connection cable in m	1.9

Possible voltage variant 1
Electrical connection	AC 230V 50HZ
Electric heater rating in kW	2.5
Total rated load in kW	3.3
Fuse rating in A	16

Water connection/drainage
Cold water [number]	1
Hot water [number]	1
DI water	1
VEP feed pump for demineralised water [option]	Yes
Required flow pressure in kPa	200-1000
Maximum delivery head for drain pump in cm	100
Integrated water softener	Yes
Maximum water hardness (cold water/hot water) in mmol/l	10.7
Drain pump [DN]	22
Water protection system	Waterproof system

Dimensions and weight
External dimensions, net height in mm	835
External dimensions, net width in mm	598
External dimensions, net depth in mm	598
External dimensions, gross height in mm	920
External dimensions, gross width in mm	670
External dimensions, gross depth in mm	740
Wash cabinet, usable height in mm	520
Wash cabinet, usable width in mm	530
Wash cabinet, depth of upper basket in mm	474
Wash cabinet, depth of lower basket in mm	520
Net weight in kg	74
Gross weight in kg	83
Maximum floor load in N/m²	1220

Emissions data
Emission sound pressure level in the workplace	<70 dB(A) re 20 µPa
Heat dissipation into the room in MJ/h	1.44

Programs
Extra Short	Yes
Standard	Yes
Universal	Yes
Intensive	Yes
Inorganic	Yes
Agar	Yes
Injector Plus	Yes
Pipettes	Yes
Plastics	Yes
Oil	Yes
Hygiene 93/10	Yes
Pasteurising	Yes
Cold water rinse	Yes
Demineralised water rinse	Yes

Features
1 dispenser pump for liquid cleaning agent	Yes
1 dispenser pump for neutralising agent	Yes
Suction lance for media canisters 10–20 l (optional)	Yes
Convenient suction lance DC10	Yes
Steam condenser	Yes
Spray pressure monitoring	Yes
How-to sequences	Yes
Wash cabinet lighting	Yes
Interface for process documentation (optional)	Yes
Multi-component filter system	Yes
Variable-speed heater pump	Yes
Load carrier – direct coupling	Yes
EcoDry	Yes
In-door salt container	Yes
Customer Service optical interface	Yes
Wash cabinet seamlessly welded using laser technology	Yes
Heater elements outside wash cabinet	Yes
EasyLoad	Yes
Oil and grease-resistant seals	Optional (depends on type)
Wash cabinet made from high-quality stainless steel (1.4301/304)	Yes
Extensive components (option)	Yes
