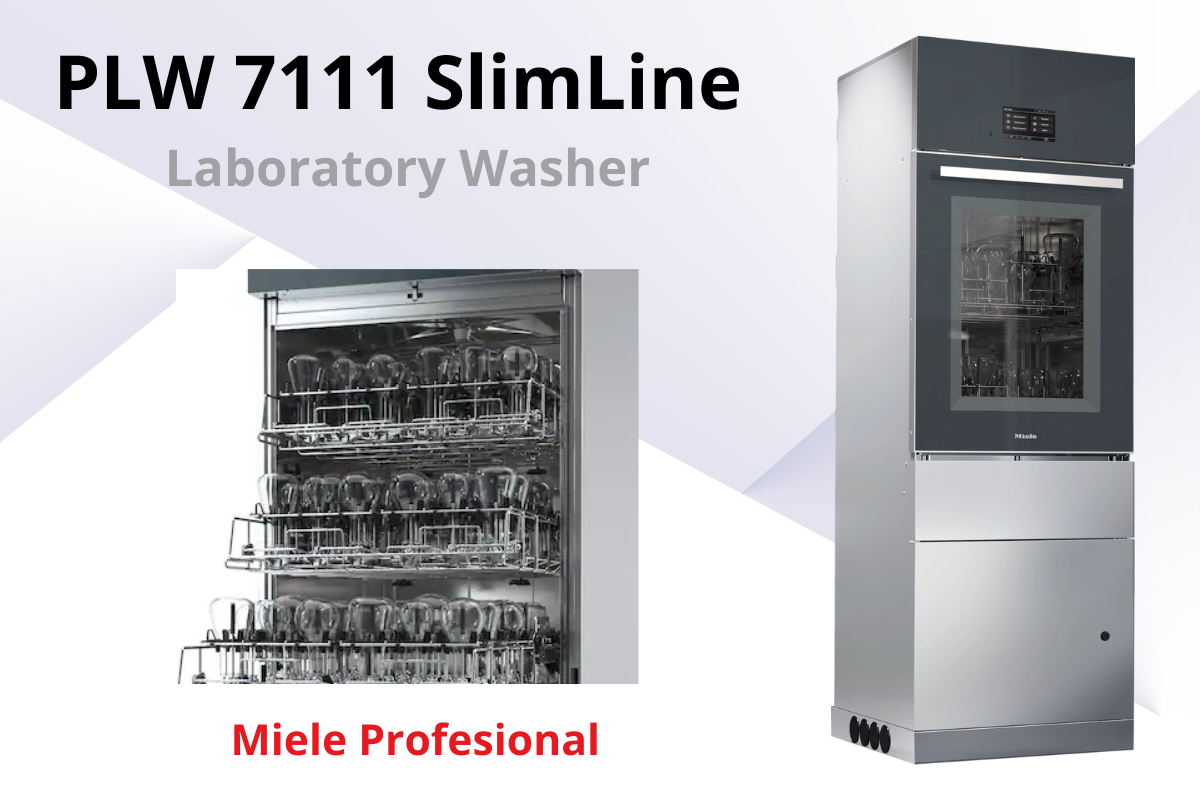

PLW 7111 SlimLine Laboratory Washer - The Perfect Fit

Perfect and analytically pure reprocessing of laboratory glassware with the new SlimLine laboratory washers from Miele Professional, now featuring the EasyLoad system: for fast loading and highly efficient use of wash cabinet space.

The new SlimLine laboratory washers from the PLW 7111 series set new standards in performance and user-friendliness. An entirely redesigned washing system boasts considerably better performance compared with the previous model series and, thanks to a variable-speed pump, is able adjust circulation pressure and water consumption to each load.

Performance/cycle 192 narrow – necked glasses or 98 pipettes – 241 l usable capacity
Simple and flexible – EasyLoad with flexible level positions
Efficient – strong pump power with the variable-speed pump
High capacity – reprocessing of laboratory flasks up to 50 I

Performance/cycle 192 narrow – necked glasses or 98 pipettes – 241 l usable capacity
Simple and flexible – EasyLoad with flexible level positions
Efficient – strong pump power with the variable-speed pump
High capacity – reprocessing of laboratory flasks up to 50 I

Model

PLW 7111	S-1011	S-1012	S-1031	S-1017	S-1029]	S-1002]
Electric heating	Yes	Yes	Yes	Yes	Yes	Yes
Hot air drying	Yes	Yes	Yes	Yes	Yes	Yes
Steam Condenser	Yes	Yes	Yes	Yes	Yes	Yes
Drain pump	Yes	Yes	Yes	Yes	Yes	Yes
Water Softener		Yes	Yes	Yes	Yes	Yes
DI Pump			Yes
Tank Heated				Yes
Printer					Yes
Oil and grease-resistant seals						Yes

Product Benefits

1. Cleaning Result

Integrated hot-air drying

Excellent drying results

All reprocessing items are dried efficiently using hot air filtered with a HEPA filter.

A powerful hot air dryer reduces the batch time and facilitates seamless process operations. In particular, reprocessing items with a complex geometry require outstanding drying performance.

Integrated water softener

Clean results

Minerals in tap water can have a negative effect on the processing result. Miele washer-disinfectors are therefore fitted ex works with a water softener which removes the bulk of ions that cause water hardness from the tap water.

Variable-speed pump

The heart of exceptional results and efficiency

The variable-speed pump is at the heart of Miele’s washer-disinfectors. The speed of the pump and thus the wash pressure is adjusted for individual programme blocks – high pressure facilitates the removal of stubborn soiling, while low pressure guarantees complete wetting of the load items. This intelligent technology is particularly efficient in terms of water and energy consumption.

Innovative cleaning programme

Cleaning perfection

For more than 50 years Miele Professional has been carrying out research and development in the area of cleaning and disinfection on an ongoing basis. Based on our decades of experience, special programmes such as Orthovario, OxiVario, Robotvario and Inorganic and Organic have been developed.

2. Quality

SlimLine design

Space-saving

The slim design, just 650 mm wide, fits in the smallest of spaces while ensuring a high capacity.

Electropolished wash cabinet

For a residue-free wash result

Minimum residues in the wash cabinet thanks to high-quality electropolished stainless steel (1.4404 /AISI 316L).

Mobile plinth

Easy to service

The castors integrated into the plinth enable the machine to be pulled out easily for maintenance or service work. This ensures ease of accessibility even where several machines are installed in a row.

Easy-to-service construction

Simple access to the machine

For planned maintenance and servicing, and in the event of a fault: The easier it is for the technician to install important components inside the machine the quicker the machine will be back up and running. For this reason Miele Professional is keen to encourage simplicity in the design of its appliances from the development stage onwards, as this facilitates easy access and quick servicing.

Oil and grease-resistant seals

Long service life even with heavy oil soiling

Robust – seals designed specifically for programmes for removing oil and grease stains.

3. Safety

Full-glass door

Easy to service

In combination with the chamber lighting, the glass door allows a visual check of the current process.

HEPA filters

Pure air

Even in the case of instruments with a complex design, laboratory glassware or breathing apparatus, every surface is quickly and thoroughly dried with hot air. The ambient air drawn in for this process must first pass through a highly effective HEPA filter. Thus the influx of undesirable suspended solids into the wash cabinet is prevented and the load items are protected against recontamination.

Process documentation

End-to-end documentation

The complete minuting and documentation of all the reprocessing processes ensures the highest level of safety for patients and users. Miele Professional offers numerous documentation solutions for every need. In addition, the analysis of the recorded process data facilitates the effective optimisation of the entire reprocessing operation.

Water protection system

Protection against water damage

All-round protection against water damage: in the event of problems, the system stops water inlet automatically.

4. User Convenience

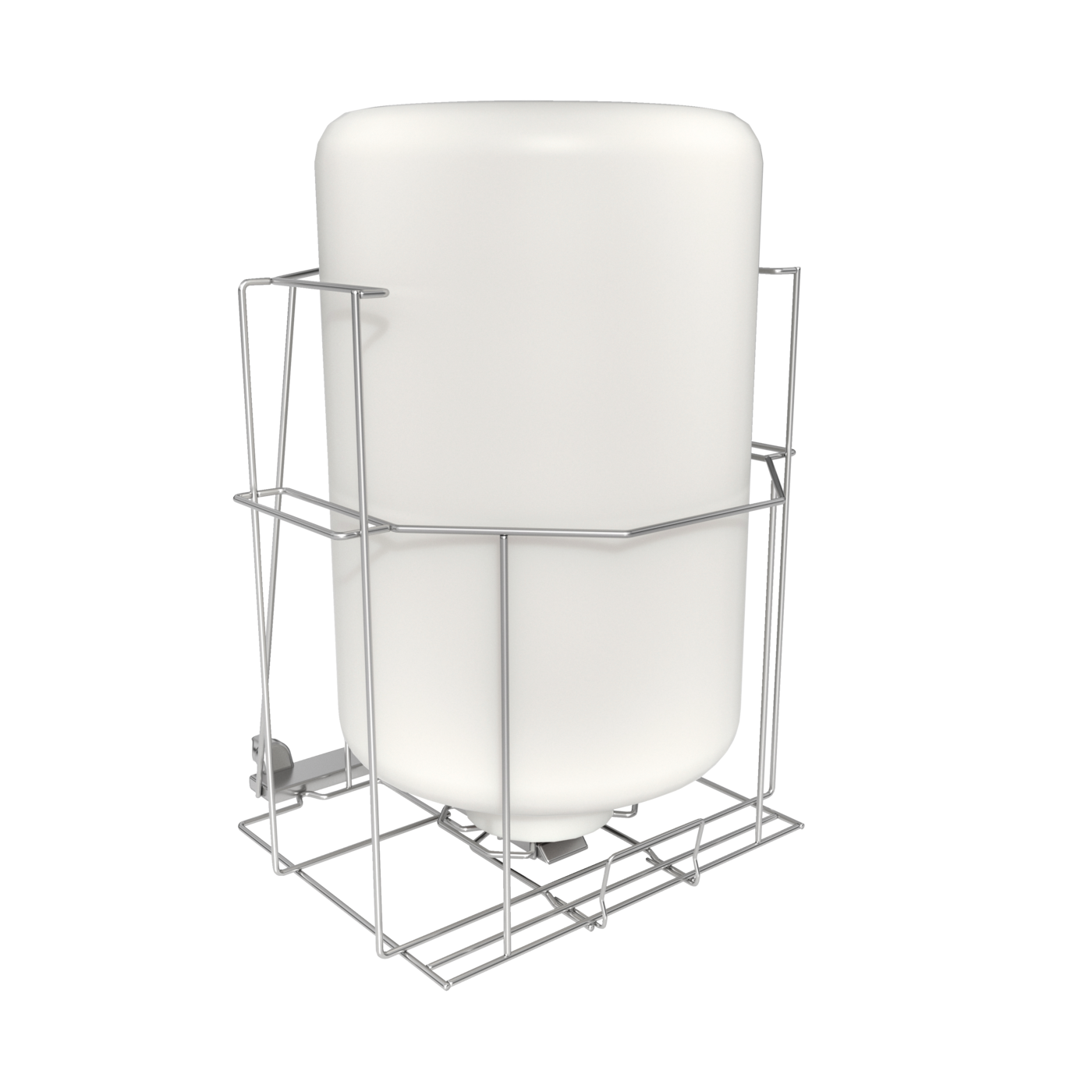

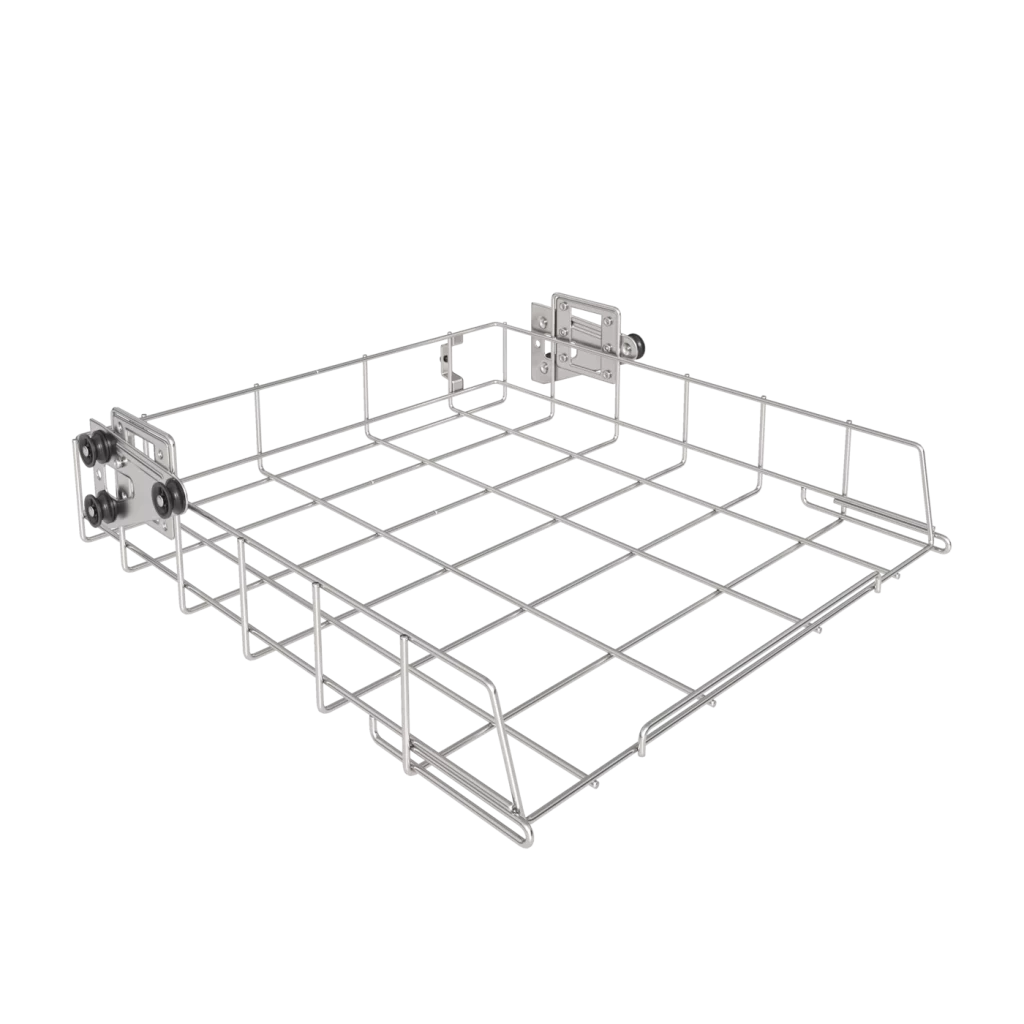

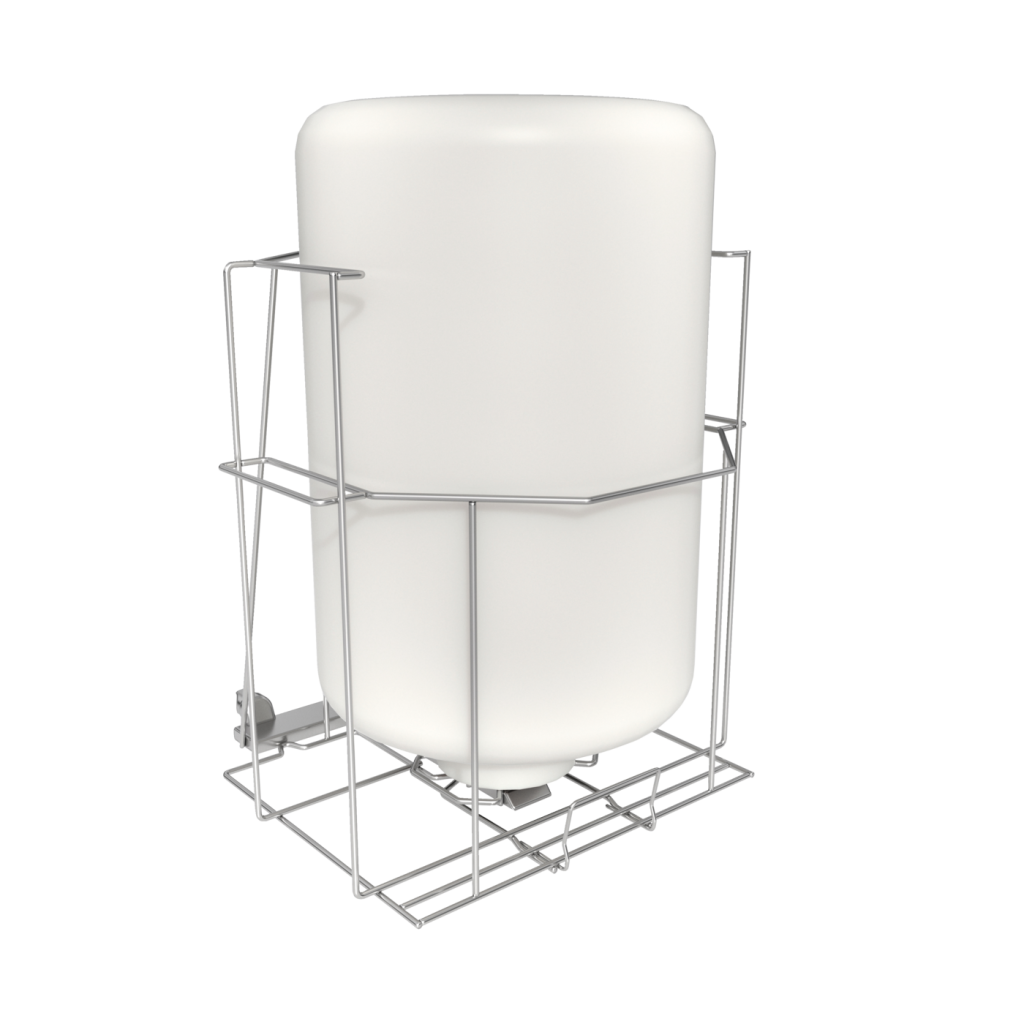

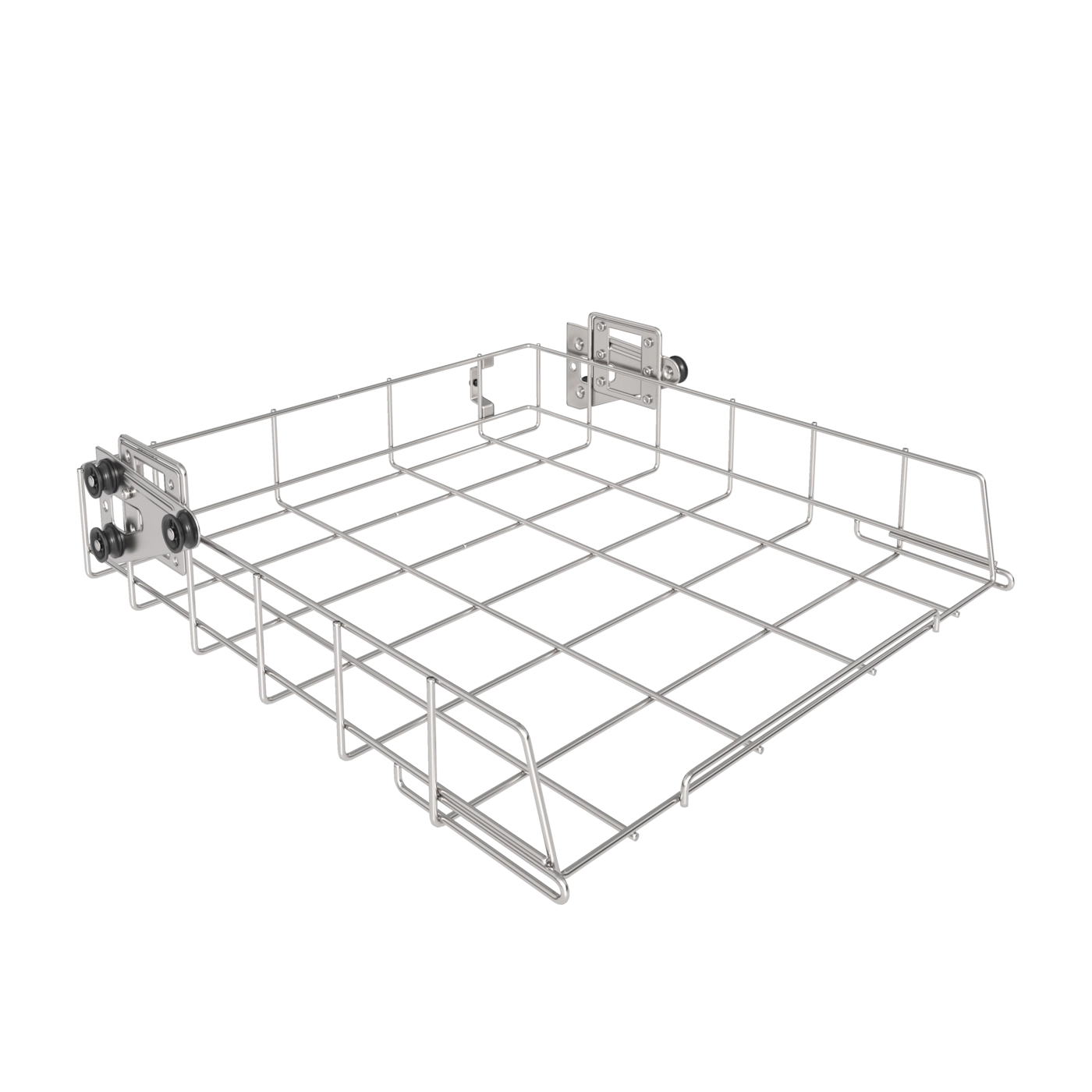

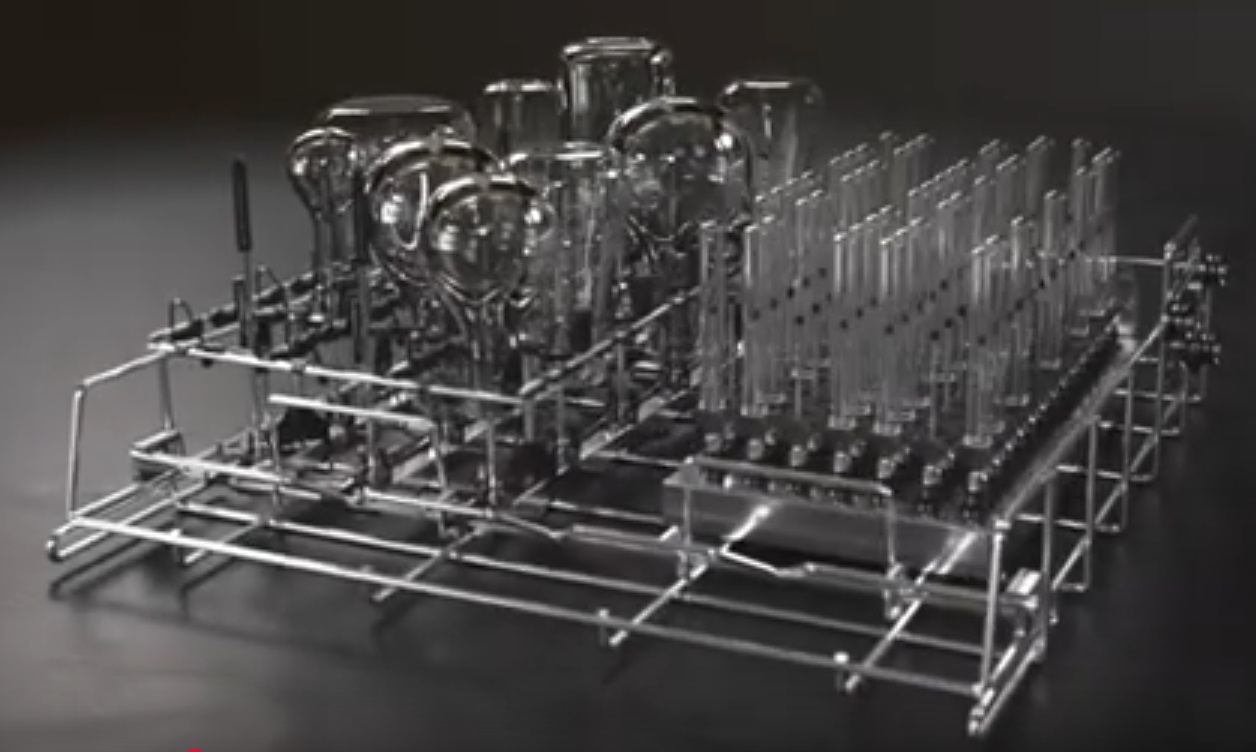

Modular load carriers

Versatile load carriers

The versatile load carriers from Miele Professional offer a wide array of possibilities with regard to loading. The load carriers can be flexibly adapted to the load items in just a few steps with a small number of load carriers in combination with some additional modules and inserts. This saves costs as well as space.

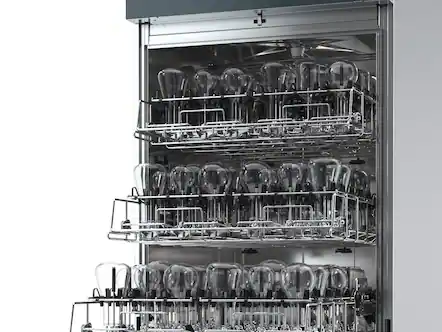

SmartLoad

Versatile

The position of the wash levels can be easily adapted to the height of the load items. If only the lower wash level is used, load items with a height up to 630 mm can be reprocessed. The telescopic runners in the wash cabinet make it even easier to load and unload items.

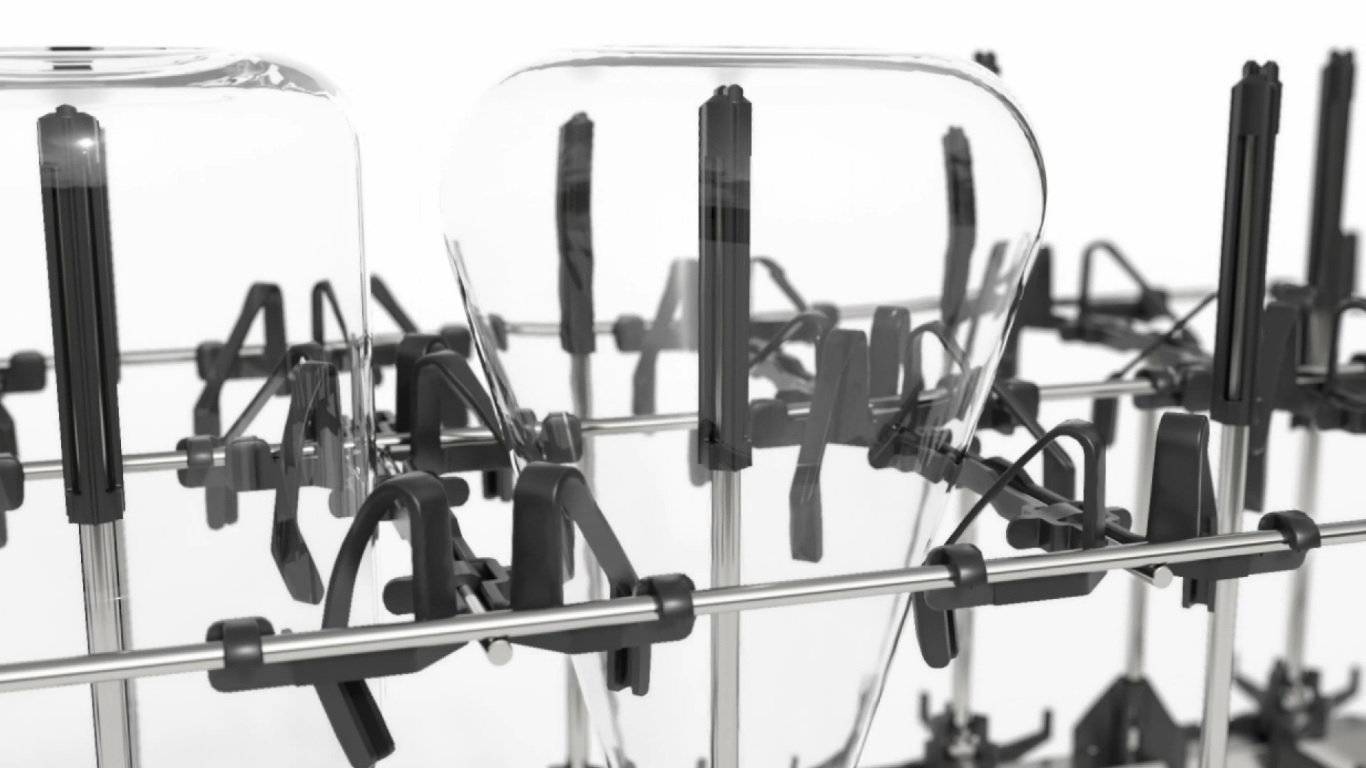

EasyLoad system

Simple loading with EasyLoad

The EasyLoad system makes reprocessing laboratory glassware considerably faster, simpler and more reliable. The biggest benefit afforded by the new system is that load items can be positioned over nozzles both more simply and faster as height adjustment of the holders is no longer necessary thanks to the smart combination of nozzles and holder racks. This makes correct positioning extremely easy.

Programmable controls

Increased versatility

The programmable controls give Miele Professional washer-disinfectors, thermal disinfectors and lab washers a high level of flexibility. The appliances are already equipped with numerous programmes ex works. Authorised users can modify these programmes or upload their own.

Clear text display

Text display

Everything at a glance: The display shows everything as clear text in the country-specific language.

Maximum user convenience

7" colour touch display with intuitive controls

The 7″ colour display is fitted flush with the appliance front, making the surfaces easy to clean. The intuitive touch controls offer a straightforward, safe way to apply all the settings you need. You can quickly find an overview of all the information about your machine on its display.

Easy, convenient handling

Touch controls

Easy to operate, even with gloves, and especially easy to clean: the clear text display has a touch-sensitive surface that is easy to disinfect.

Product Details

Construction type and version
Construction type	Freestanding, 1 glazed hinged door
Type of heating	Electricity
Front/back	Stainless Steel
Side panels	Stainless steel
Single/multiple installations	Yes
Slimline construction type	Yes
Number of wash levels	3
Loading and unloading with telescopic runners	Yes
Electric door lock	Yes
Buzzer, acoustic signal at end of programme	Yes
Service-friendly design	Yes

Application
Suitable for laboratories	Yes
Suitable for industrial applications	Yes

Capacity
Narrow-necked glassware per cycle [number]	192
Laboratory flasks per cycle [number]	108
Pipettes per cycle [number]	98

Performance data
Circulation pump, Qmax in l/min	750
Wash cabinet usable capacity in l	241

Control system
Control type	TouchControl
Programme selection	Full-touch colour display
Programmability	Freely programmable
Programmes [number]	23
Free programme positions [number]	20
Automatic programme restart	Yes
Programme sequence display	Yes
Selectable display languages	Yes

Standard electrical connection
Electrical connection	3N AC 380-415V 50HZ
Heater rating in kW	8.4
Total rated load in kW	10.1
Fuse rating in A	16
Length of mains connection cable in m	4

Water connection / drainage
Cold water [number]	1
Hot water [number]	1
DI water [number]	1
Required flow pressure in kPa	100 – 600
Integrated water softener	Yes
Maximum water hardness (cold water/hot water) in mmol/l	0.7
Drain pump [DN]	25
Drain valve [DN]	38
Water protection system	Yes

Drying unit
Drying unit heating type	Electricity
Air throughput in m³/h	130
Time setting in 1-minute increments	0-60
HEPA filter class	H14
HEPA filter filtration efficiency (DIN EN 1822) in %	99.995
Electric heater rating in kW	4

Dimensions and weight
External dimensions, net height in mm	1965
External dimensions, net width in mm	650
External dimensions, net depth in mm	702
External dimensions, gross height in mm	2110
External dimensions, gross width in mm	945
External dimensions, gross depth in mm	840
Wash cabinet, height in mm	717
Wash cabinet, width in mm	570
Wash cabinet, depth in mm	590
Rack height above floor in mm	850
Net weight in kg	251
Gross weight in kg	260
Maximum floor load in N/m²	680

Emissions data
Sound pressure LpA in cleaning and drying according to DIN EN ISO 11201	68 dB(A) re 20 µPa
Heat dissipation into the room in MJ/h	0.8

Programmes
Thermal disinfection	Yes
Laboratory glassware reprocessing	Yes
Plastics	Yes

Features
2 integrated diaphragm dispenser pumps for liquid media	Yes
Additional integrated dispenser pumps	2
Volume flow control	Yes
Interface for process documentation	Yes
Multi-component filter system	Yes
Load carrier – direct coupling	Yes
Integrated hot air drying	Yes
Miele Cloud Service	Yes
EasyLoad	Yes
Setting options for process chemicals (3 x 5 l)	Yes
Wash cabinet made of high-quality stainless steel (1.4404/316L), electropolished	Yes
SlimLine mobile plinth	Yes
Variable-speed pump	Yes
Multi-coloured chamber lighting	Yes
Modular basket design	Yes
Chamber lighting	Yes
